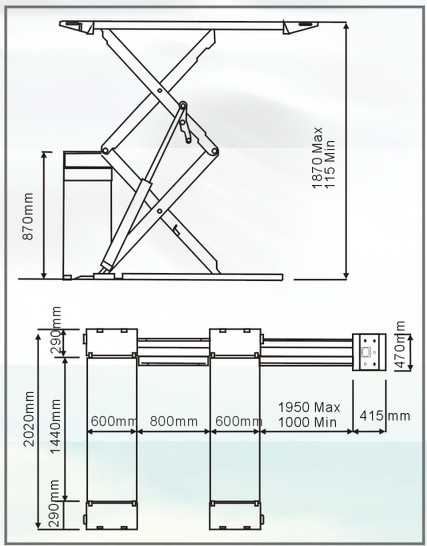

ET-1004 Thin Scissors Lift

8 Lift is super thin, the original height is 115mm, no need for hiding basement;

The work platform is adjustable from 1440mm-2020mm;

Double parallel connection cylinder, it is synchronized by adjustment;

Lift height is adjustable from 115mm-1870mm;

Hydraulic self lock safety system;

Standard: Chinese pump and 380V motor, Option: import pump or 220V motor;

The Lengthen board can be used for ramp and loading;



Model Electricity power Power Air Capacity Lifting height
GL1004 380V/50Hz 2.2KW 6-8kg/cm 2 3000kgs 115-1870mm
